Compact size, small clearance
SMD type antenna
Operating temperature -40°C~105°C
RoHS-compliant & halogen-free

Application

*More Information

Size	Type	Image	Operation Frequency	Part Number	Datasheet

Size	Type	Operation Frequency	Part Number

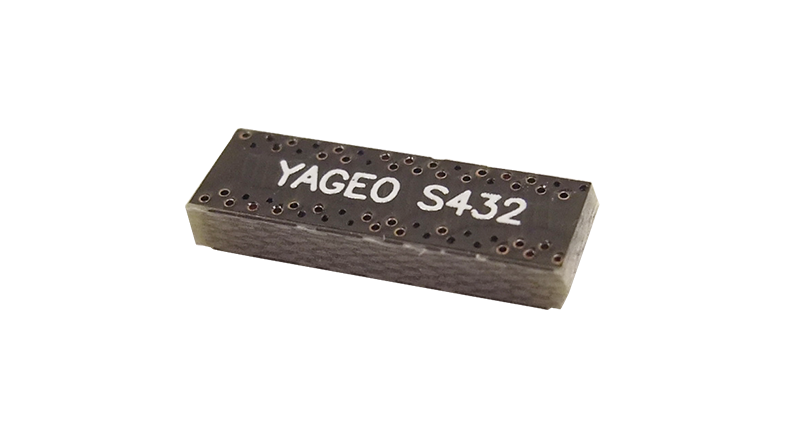

12x4x1.6 mm	Sub-GHz/ Short-range	315MHz	ANT1204F002R0315A
12x4x1.6 mm	Sub-GHz/ Short-range	420/430/433MHz	ANT1204F002R0433A
12x4x1.6 mm	Sub-GHz/ Short-range	915/920MHz	ANT1204F005R0915A

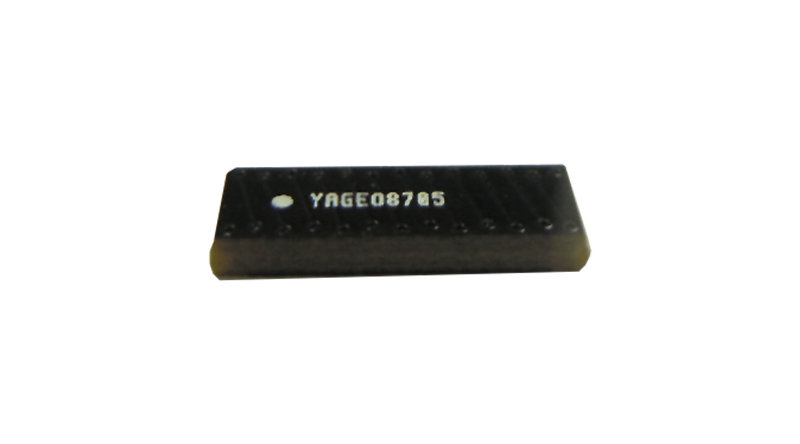

12x4x1.6 mm	Sub-GHz/ Short-range	870MHz	ANT1204F007R0870A

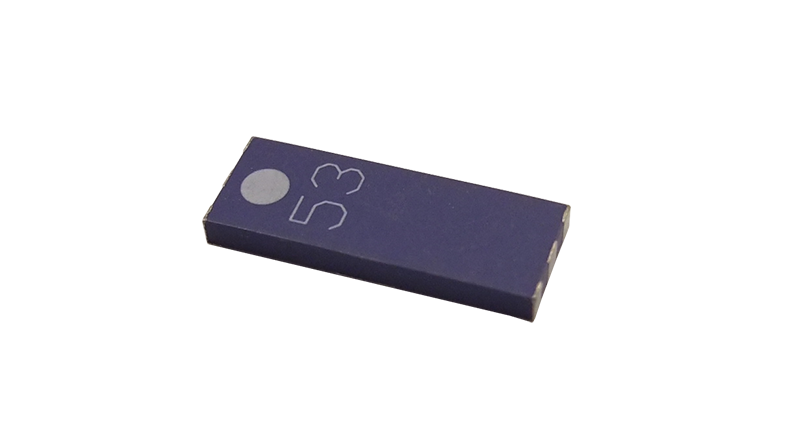

12x4x1.2 mm	WWAN	900/1800 MHz	ANT1204LL00R0918A
12x4x1.1 mm	GPS/GNSS	GNSS	ANT1204LL04RGNSSA

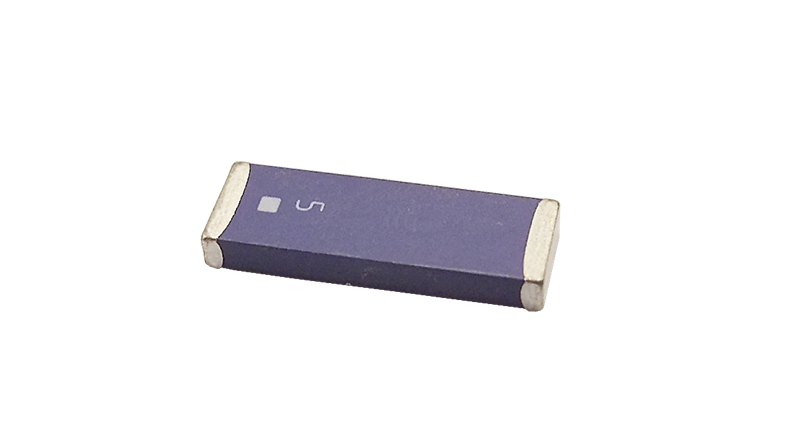

12x4x1.6 mm	Sub-GHz/ Short-range	915/920MHz	ANT1204LL05R0915A

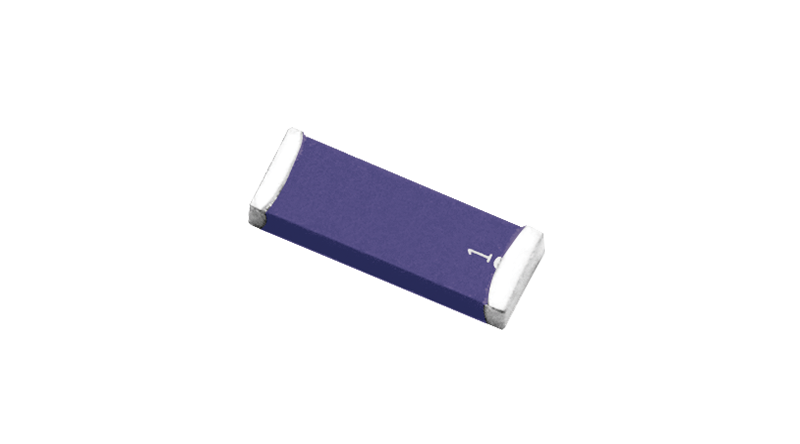

12x4x1.6 mm	Sub-GHz/ Short-range	315MHz	ANT1204LL20R0315A
12x4x1.6 mm	Sub-GHz/ Short-range	420/430/433MHz	ANT1204LL20R0433A
1.6x0.8x0.4 mm	WLAN/BT/ISM	2.4-2.5 GHz	ANT1608LL14R2400A

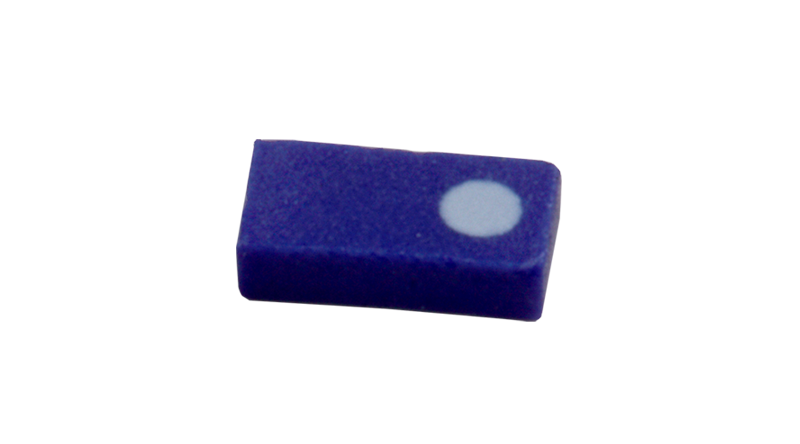

1.6x0.8x0.4 mm	WLAN/BT/ISM	2.4/5GHz	ANT1608LL14R2455A

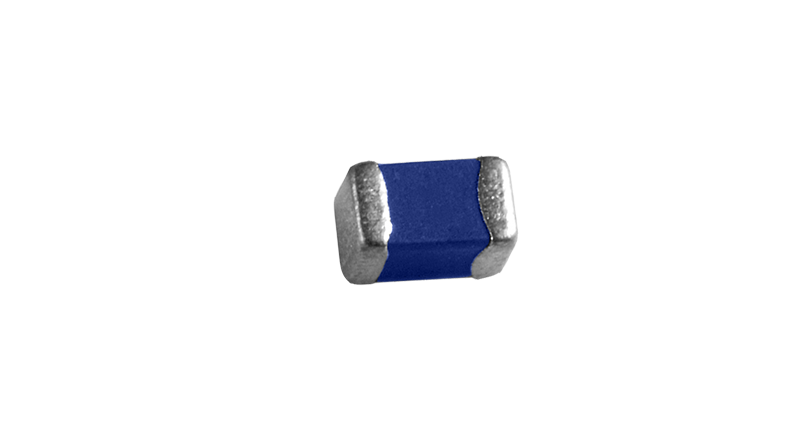

2.0x1.2x1.1 mm	WLAN/BT/ISM	2.4GHz	ANT2012LL00R2400A

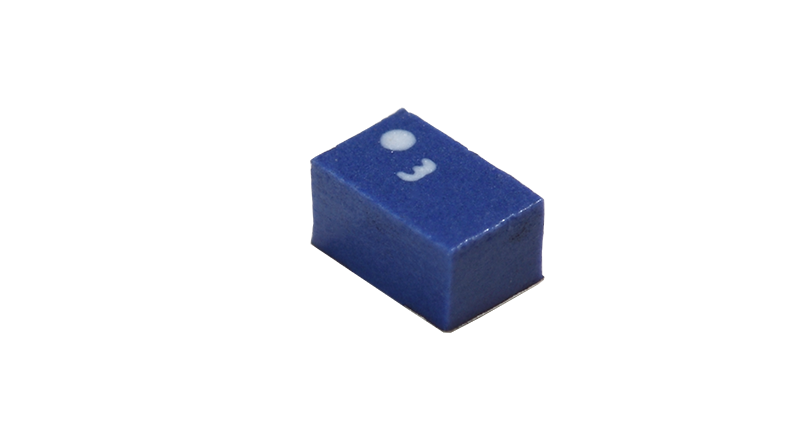

2.0x1.2x1.0 mm	WLAN/BT/ISM	2.4GHz	ANT2012LL13R2400A

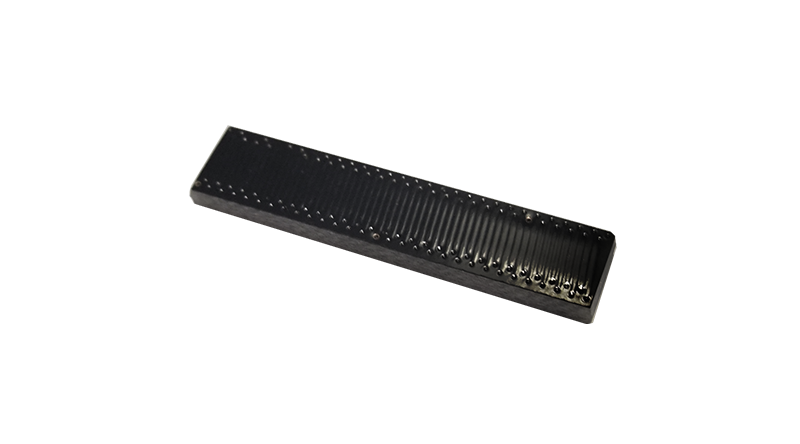

24x5x1.6 mm	FM	88MHz	ANT2405F001R0098A
24x5x1.6 mm	Sub-GHz/ Short-range	169MHz	ANT2405F001R0169A

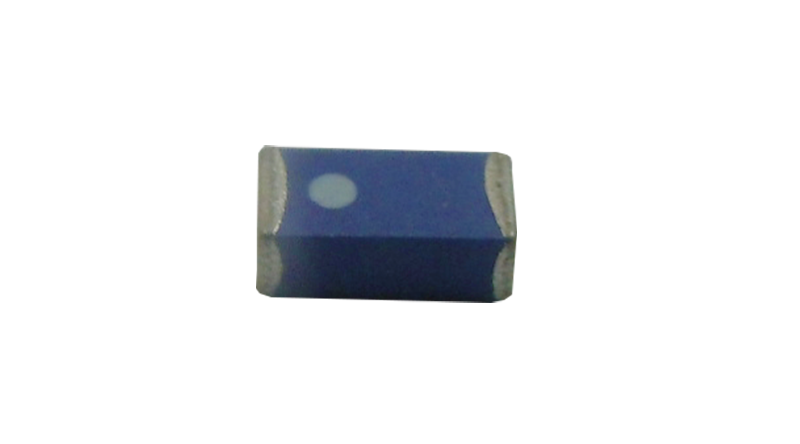

3.2x1.6x1.2 mm	WLAN/BT/ISM	2.4GHz	ANT3216LL00R2400A

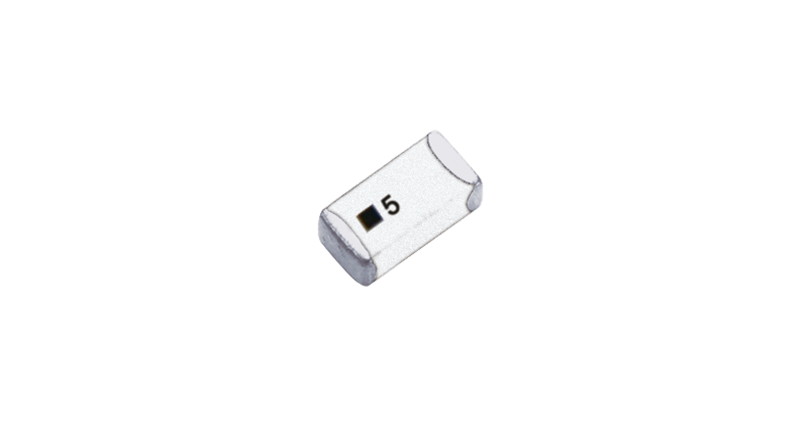

3.2x1.6x1.2 mm	WLAN/BT/ISM	5GHz	ANT3216LL05R5000A

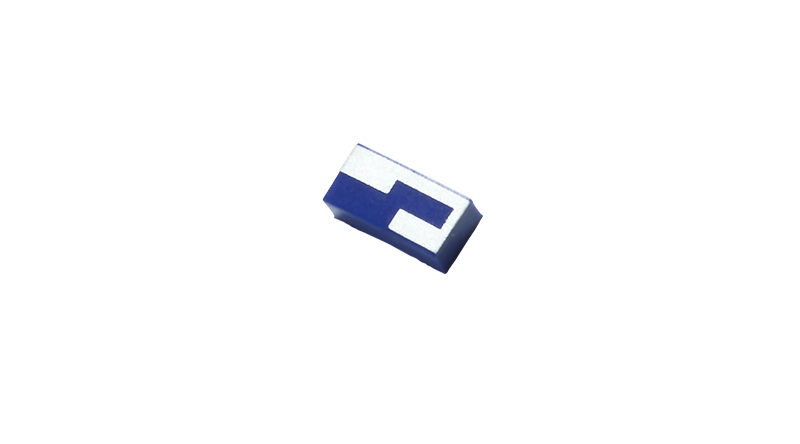

3.2x1.6x1.2 mm	GPS/GNSS	GPS	ANT3216LL15R1575A

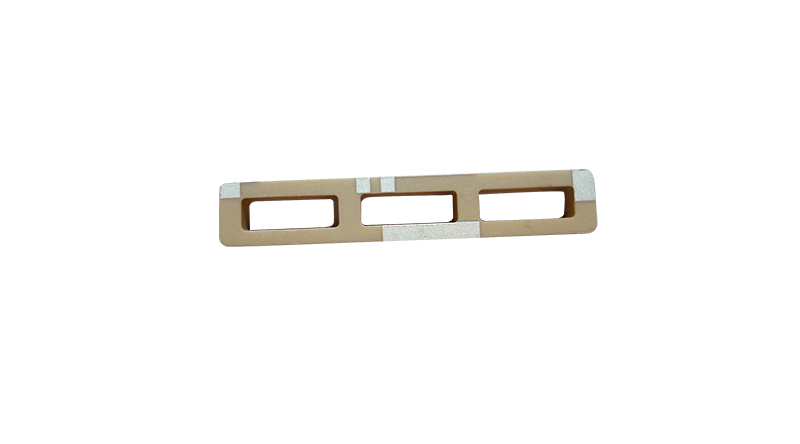

35x5x6 mm	WWAN	850/900/1800/1900/2100 MHz	ANT3505B002TWPENS

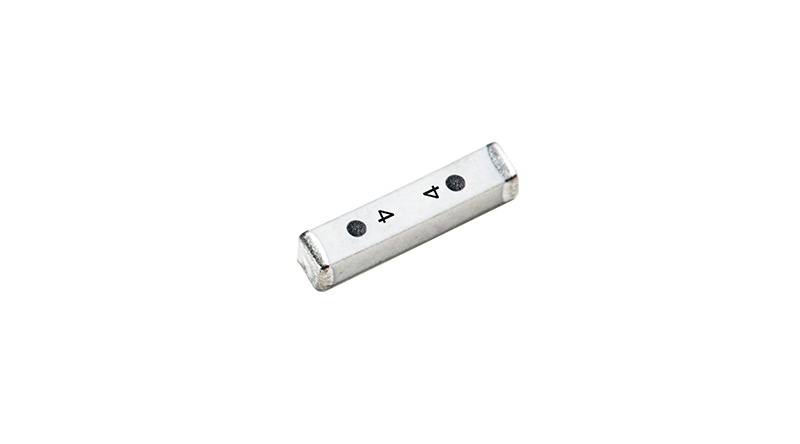

5.0x1.0x1.0 mm	WLAN/BT/ISM	2.4GHz	ANT5010LL04R2400A

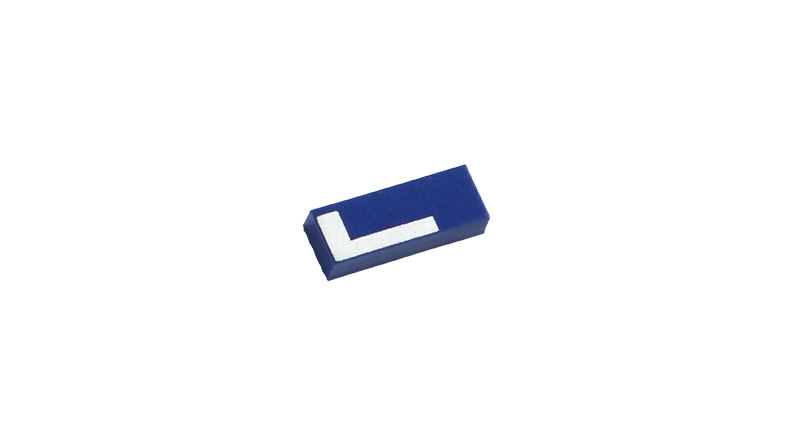

5.3x2.0x1.25 mm	WLAN/BT/ISM	2.4GHz	ANT5320LL24R2400A

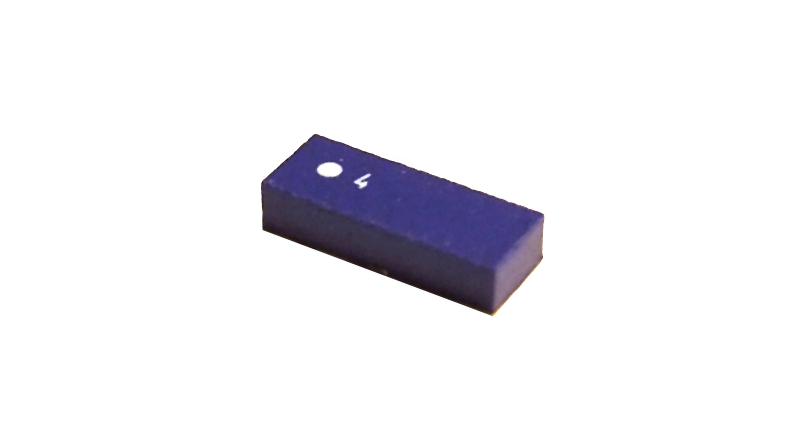

5.3x2.0x1.2 mm	WLAN/BT/ISM	2.4/5GHz	ANT5320LL24R2455A

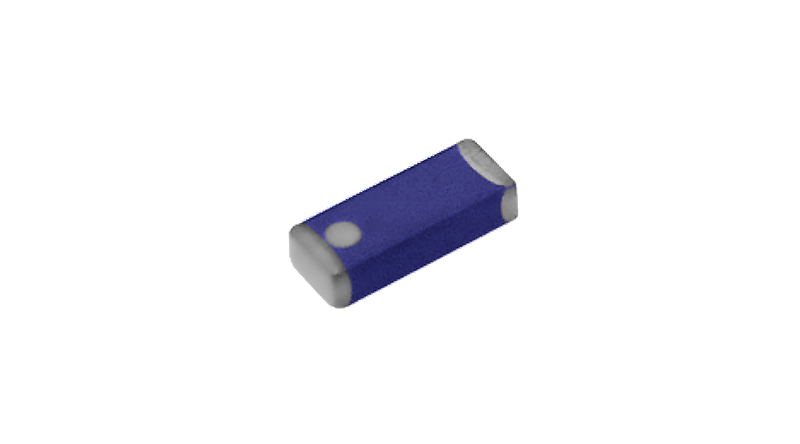

5.3x2.0x1.3 mm	WLAN/BT/ISM	2.4GHz	ANT5320LL45R2400A
7.0x2.0x0.8 mm	Sub-GHz/ Short-range	870MHz	ANT7020LL05R0870A

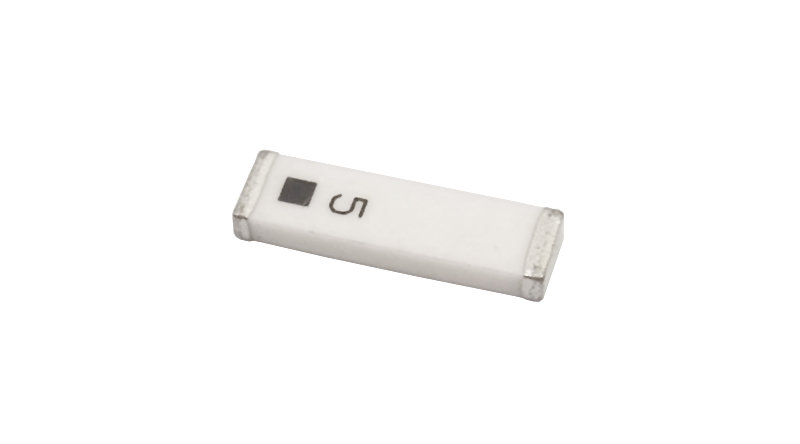

7.0x2.0x0.8 mm	WLAN/BT/ISM	2.4GHz	ANT7020LL05R2400A

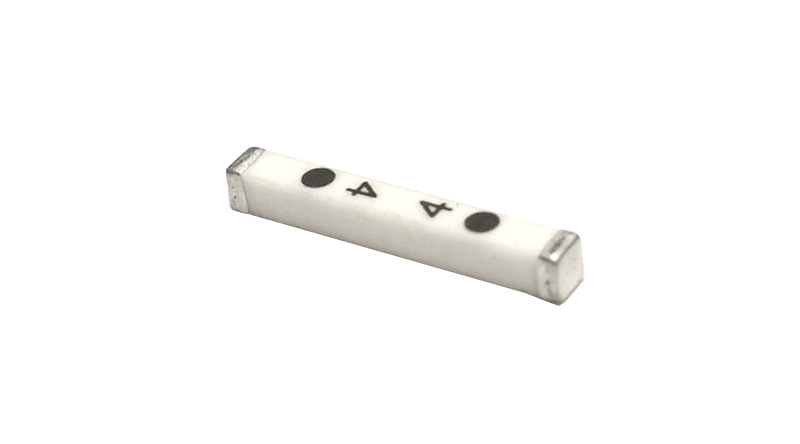

8.0x1.0x1.0 mm	WLAN/BT/ISM	2.4GHz	ANT8010LL04R2400A

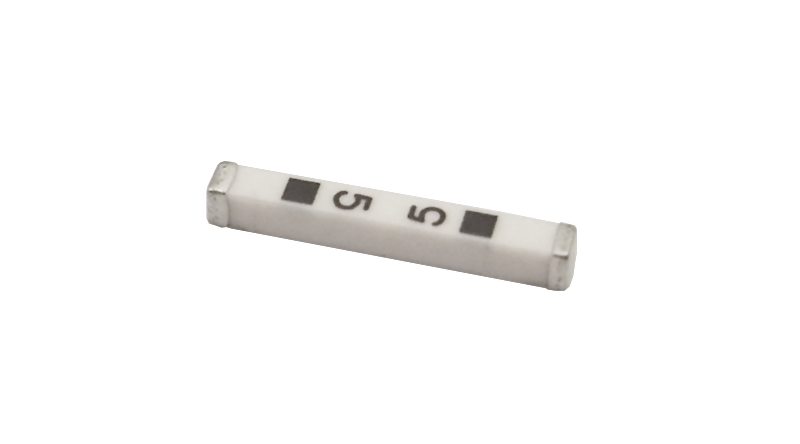

8.0x1.0x1.0 mm	GPS/GNSS	GPS/GLONASS	ANT8010LL05R1516A
8.0x1.0x1.0 mm	GPS/GNSS	GPS	ANT8010LL05R1575A
8.8x6.8x0.9 mm	DECT	1.99GHz	ANT8868LL00R1880A

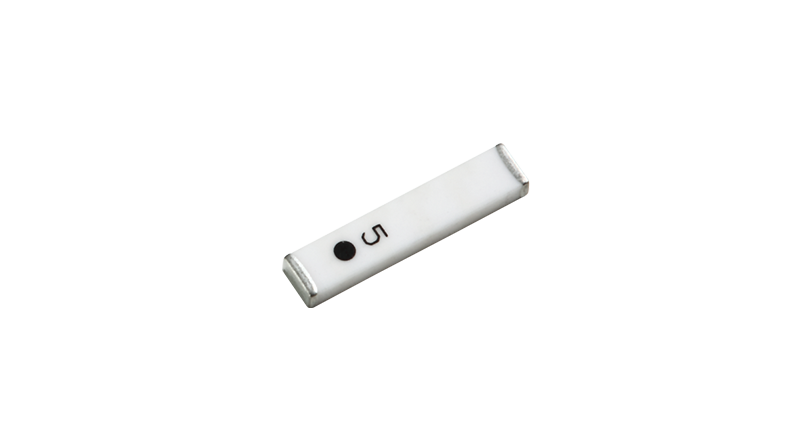

9.5x2.0x1.1 mm	WLAN/BT/ISM	2.4GHz	ANT9520LL06R2400A
